Measuring Arm vs. CMM: Choosing Your Best Solution for Industrial Measurement

In the industrial field, measurement technology plays a pivotal role in ensuring quality assurance throughout manufacturing, facing the dual challenge of pushing the boundaries of precision while meeting the evolving demands of diverse industrial applications. This article provides a comprehensive guide to selecting industrial measurement device, offering an in-depth comparison of measuring arm (portable CMM) and coordinate measuring machine (CMM). It elaborates their technical features, application scenarios, and combined strengths. Through data-based case studies and technical analysis, this guide provides a strategic framework to help enterprises decide between single device or integrated solution, ultimately supporting goals of cost reduction, efficiency improvement and quality control enhancement.

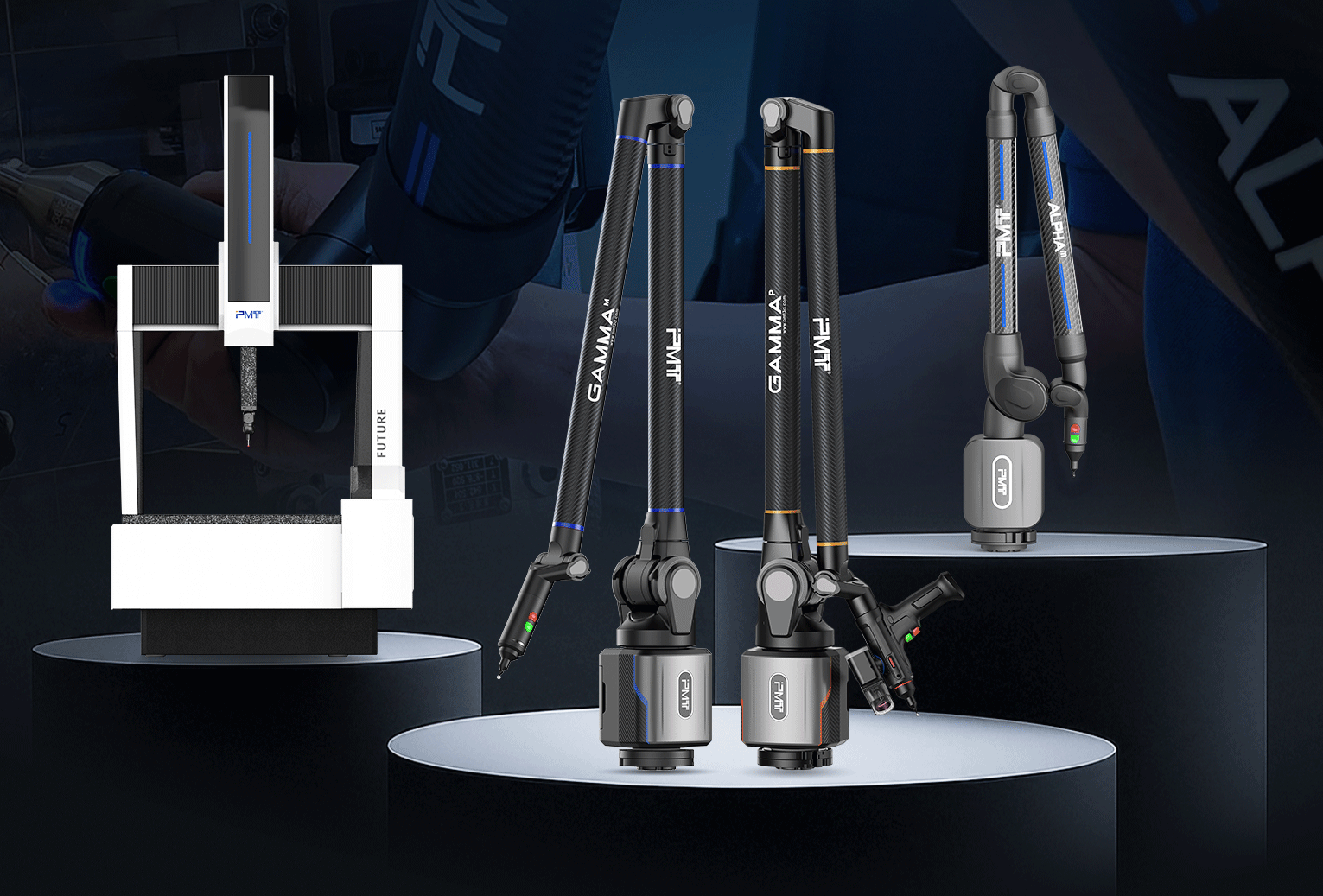

CMM&Portable CMM from PMT

What is a Measuring Arm and a Coordinate Measuring Machine?

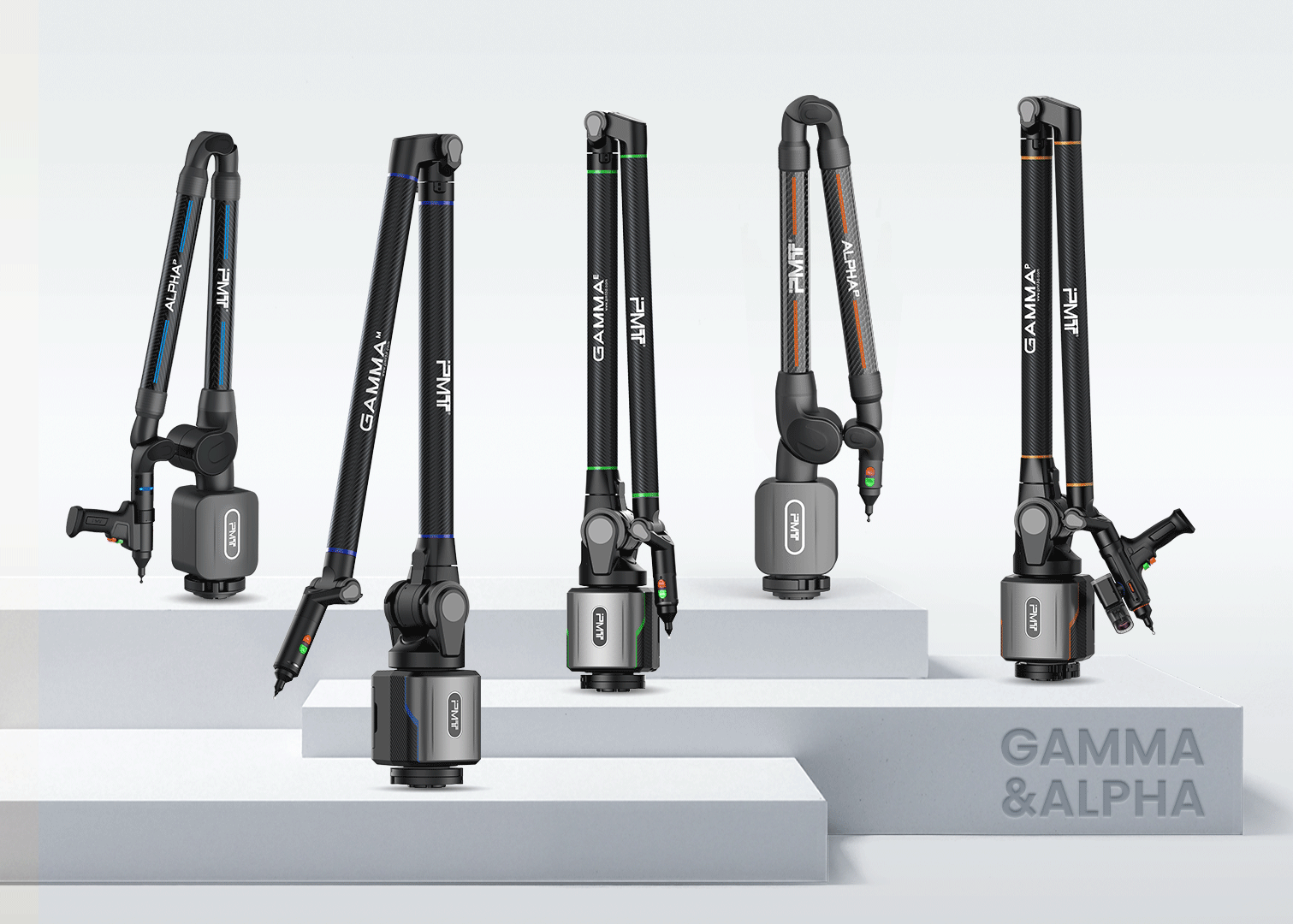

A measuring arm, also known as portable coordinate measuring machine (CMM), is a high-precision 3D measurement device that resembles a multi-axis industrial robot. Each joint of the measuring arm contains high accuracy encoders to capture real-time angle changes. Using the arm lengths and real-time angle adjustments, the portable CMM can determine the probe’s coordinate values. Engineers can manually obtain measurement points using the contact probe or a laser scanner to capture surface data, enabling accurate acquisition of GD&T parameters and high-density point clouds. The measuring arm is widely used in on-site applications such as quality inspection, mold dimension control, digital modeling, and rapid prototyping.

Diagram of the Measuring Arm

A coordinate measuring machine (CMM) is a high-precision measurement device with a guideway structure consisting of three perpendicular axes (X, Y, and Z). A probe moves accurately along these axes to locate measured point in a 3D coordinate system by measuring its displacement in each direction. High-precision sensors, such as grating scales, are mounted on the guideways to track the probe’s movement in real time and transmit the data to the computer. Based on this data and the geometry of the guideways, the computer then calculates the precise coordinates of the probe in three dimensions.

Schematic diagram of CMM

Choosing Between Portable CMM Arms & Traditional CMMs?

There’s no one-size-fits-all solution in field applications. Choosing between a measuring arm and a CMM depends on several key factors:

  • Measurement Accuracy and Application Scenarios

Portable CMM vs. Traditional CMM: Performance in Industrial EnvironmentsThe accuracy of PMT measuring arm can reach as high as 0.012mm. Its lightweight design enables portability and flexibility in various temperatures and dusty industrial environments, making it ideal for on-site inspections. By contrast, CMM requires an extremely stable conditions with constant temperature and humidity to operate effectively. Despite its controlled usage requirements, the CMM can deliver an extremely high accuracy of up to 1.2μm.

  • Workpiece To Be Measured

PCMM&CMM Comparative Analysis of Workpiece InspectionThe portable measuring arm is highly adaptable for inspecting large or complex-shaped parts due to its multi-axis flexibility and ease of movement, making it particularly indispensable in tooling inspection. While CMM is hard to move and have ultra-high accuracy, making it more suitable for micro-precision parts and batch inspection.

  • Long-term Value

If a company’s primary focus lies in rapid on-site measurement, real-time assembly and adjustment processes, as well as small to medium batch inspections, portable CMM tend to offer a higher return on investment over the entire product lifecycle, which is attributed to its flexibility, mobility, and ease of use. Conversely, when the emphasis shifts to precision metrology and laboratory-grade certified inspections, the long-term value of CMM becomes more evident, particularly as inspection volume and complexity increase.

Measuring Arm vs. CMM:An Economic Value Perspective

Based on the above, neither the measuring arm nor the CMM is absolutely superior, each serves a vital and often complementary role depending on the specific application scenarios. The following sections offer more detailed guidance for decision-making.

Portable CMM vs Bridge CMM: Comparison of Technical Specifications

Category Portable Measuring Arm CMM
Operation Manual Automated
Flexibility Multi-degree of freedom, measuring without dead zone Moderate, stationary use
Accuracy Up to 0.012mm Up to 1.2μm
Environmental Requirement Adaptable to on-site conditions, resistant to dust and temperature Laboratory conditions
Maintenance Cost Low High, the guideways and sensors need to be calibrated regularly
Personnel Requirement Low, simple and quick training High, requires specialized training and programming
Batch Inspection Good Excellent
Maintenance Cycle Every 12 months Every 12 months

Applications on Measuring Arm

PMT Technologies’ portable CMM complies with ISO 10360 Certificate, CE Directive, RoHS Directive standards.. It also passed IP5X dust proof and IPX4 water proof tests. The PMT Arm supports both contact measurement and laser scanning modes, and can be integrated with i-fork probe and an 8-axis rotary worktable to enable highly accurate and flexible measurements. Furthermore, a global service network is currently in place to provide reliable technical support to customers worldwide.

PMT Certificates Related to CMM

  • Why is Quality Inspection of Automotive Profiles Critical for New Energy Vehicles?

Aluminum alloy profiles play a key role in battery boxes for new energy vehicles and are also extensively used in vehicle body structures, drive systems, and charging infrastructure. With the continued rapid expansion of the new energy vehicle market, there is a growing demand for higher precision and enhanced reliability in the manufacturing of profiles.

Automotive Profiles Using Measuring Arm

  • Why Choose a Measuring Arm for Efficient Quality Inspection?

For features such as hole positions and GD&T, a portable CMM can quickly establish coordinate systems using planes, axes, and center points. Thanks to its wide measurement range and high flexibility, the PMT measuring arm allows for comprehensive data acquisition across the full range. It supports accurate measurement of internal and external diameters, spherical diameters, cone angles, flatness, and cylindricity, making it ideal for multi-scenario inspections of large workpieces.

Portable CMM Applications in the Automotive Industry

After completing measurement, real-time data is compared with CAD model to assess whether the tolerance meets the required standards. The results can be exported in STEP or IGS format for integration into enterprise quality management systems, thereby enabling full lifecycle traceability of the measured data.

Portable Cmm ReportIt is also worth noting that an Italian automaker has curtailed the production cycle by half with the PMT Alpha measuring arm.

Applications on PMT CMM

PMT offers a full range of CMMs to meet diverse inspection needs from high-precision metrology lab measurements to fast shop floor measurements.

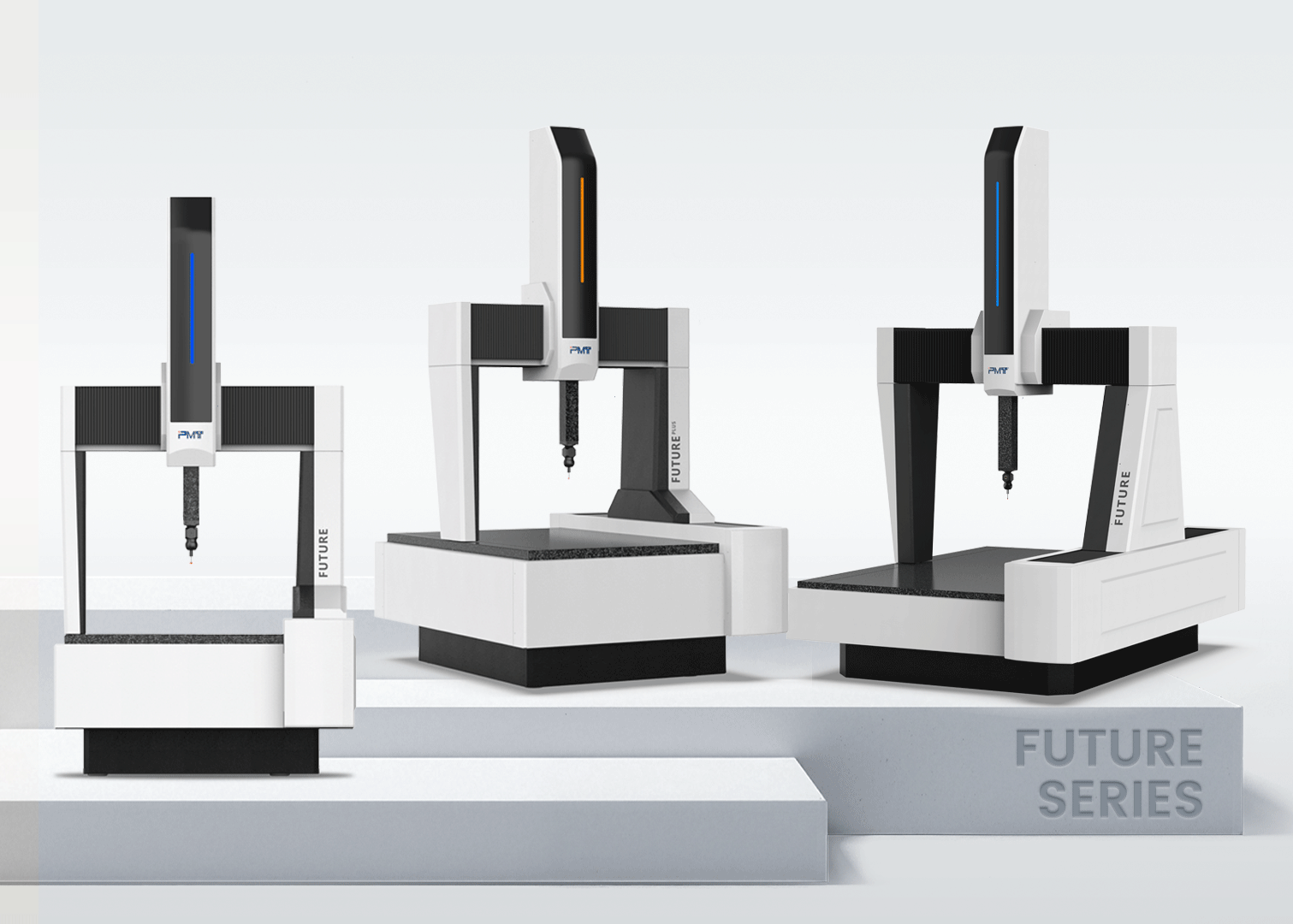

  • FUTURE Series – Flagship High-precision Bridge CMM

Ideal for metrology labs and the inspection of complex parts, delivering exceptional performance.

  • PRIME Series – Cost-effective Bridge CMM

A solution that achieves an ideal balance between high accuracy and low cost.

  • SPACE Series – Shop Floor CMM

Breaking environment limitations without the need for an air source, it is ideal for rapid on-site machining inspections.

  • LOONG Series – Gantry CMM

Facilitating the precise inspection of oversized and intricate parts.

PMT Complete Line of CMM Products

  • When Should We Choose a CMM for On-site Applications?

Coordinate Measuring Machine Application for Automotive Fixture Inspection

Automotive Fixtures: For automotive dashboard fixtures require critical dimensions and GD&T of ±0.01 mm, as well as periodic mandatory batch verifications, the PMT FUTURE series Bridge CMM can achieve automatic inspections through programming, improving efficiency by 70% compared to manual operations while eliminating human errors.

Coordinate Measuring Machine Application for Automotive Molds Inspection

Automotive Molds: When checking the dimensional consistency and tolerance of ±0.03mm between the mold and the CAD model, the PMT PRIME Bridge CMM can better analyze surface fit, positional deviations of locating holes, and identify potential deformation areas such as excessive fillet or reinforcing rib that may affect product stability.

  • Key Considerations
  1. CMM based on the part’s size and required accuracy.
  2. The measurement accuracy of CMM can be greatly influenced by environmental factors. Therefore, it is recommended that CMMs be operated in scenarios free from vibrations and with stable temperatures. PMT also recommends maintaining laboratory conditions within a temperature range of 20±2°C to ensure optimal performance.

Key Consideration of CMM

  • Efficient Quality Inspection Solution for Automotive Molds: PMT Bridge CMM + CAM3 Software

Recommend Configuration:

Measurement Range 800*1000*600mm
Probe Head APH10T, Motorised
Stylus D4*L20+L20 Extension
Angle A0B0
  • Measuring Process
  1. Establish Coordinate System: Quickly and accurately establish the coordinate system based on machining process.
  2. Tolerance Evaluation: CAM3 software supports both ASME and ISO standards, enabling precise calculation and evaluation of GD&T requirements for automotive dashboards.
  3. Data Adjustment: By comparing measured data with design tolerances, CAM3 offers visual feedback for immediate qualification checks, allowing engineers to make on-site adjustments and ensure real-time compliance.
  4. Batch Inspection: CAM3’s integrated editing and batch processing modules record and replay inspection workflows, allowing the PRIME CMM to perform automated inspections across high-volume production lines with maximum efficiency.
  5. Report Generation: CAM3 generates digital reports with deviation analysis, supporting customized reports and multiple export formats for traceability.

 Report of Portable CMM

Synergistic Effect: “1 + 1 > 2”

As the global new energy industry undergoes rapid transformation, China has built a robust and integrated ecosystem in new energy technology. In automotive manufacturing inspections, PMT portable measuring arms and CMMs have delivered “1+1>2” compound value across industries with complementary strengths and integrated data workflows. The overall efficiency has increased by more than 75%.

  • ?Technical Complementarity

Portable CMM offers high portability for on-site measurement of large parts. CMM ensures ultra-high precision in labs for critical engine and body components. Their integration covers a wide range of industrial measurement scenarios.

  • Data Integration

Based on PMT’s self-developed CAM3 measurement software, the inspection of measuring arms and CMMs can form an integrated data system, creating a complete quality inspection process that is more efficient and convenient.

In summary, PMT’s measuring arm and CMM, combined with CAM3 software, offer a versatile measurement solution suitable for both on-site and laboratory quality control.

Want to learn more? Contact us today! PMT will be your trusted partner.
